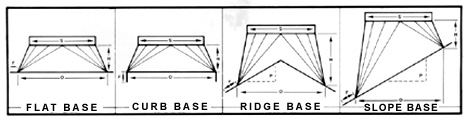

Dimensions of
Standard Turbine Bases
Standard bases
are available in galvanized, aluminum, copper and stainless steel.
| |
 |
|
| |
|
|
| |
|
S |
H |
F |
O |
|
6" |
10" |
4" |
8" |
|
8" |
10" |
4" |
10" |
| 10" |
10" |
4" |
12" |
| 12" |
10" |
4" |
14" |
| 14" |
10" |
4" |
16" |
| 16" |
10" |
4" |
18" |
| 18" |
10" |
4" |
22" |
| 20" |
10" |
4" |
24" |
| 24" |
12" |
4" |
30" |
| 30" |
12" |
4" |
36" |
| 36" |
14" |
4" |
42" |
|
|
Adustable
Bases
The
Adjustable Base from stock, reducing the time consumed to
special order or fabricate a base. Adjustable bases are
available in galvanized or aluminum and can accommodate any roof
pitch up to 7/12".
|
|
Size |
Height |
Flange |
|
6" |
7" |
14" |
|
8" |
7" |
16" |
| 10" |
7" |
18" |
| 12" |
7" |
20" |
| 14" |
7" |
22" |
|
 |
There is a silent war
underway in most attics and crawlspaces. Insulation, structure, paint
and roofing materials are under attack from heat and moisture.
Excessive heat buildup can top 150º degrees Fahrenheit in an attic.
Excessive moisture can actually condense to water droplets. The only
way to get rid of damaging heat and moisture is with a proper
ventilation system of intake and exhaust ventilators. Left
unventilated, heat and moisture can wreak havoc in a home, causing
expensive damage. With a proper ventilation system of intake and
exhaust vents, hot humid air is continually replaced by fresh air,
removing excessive heat and moisture. |
